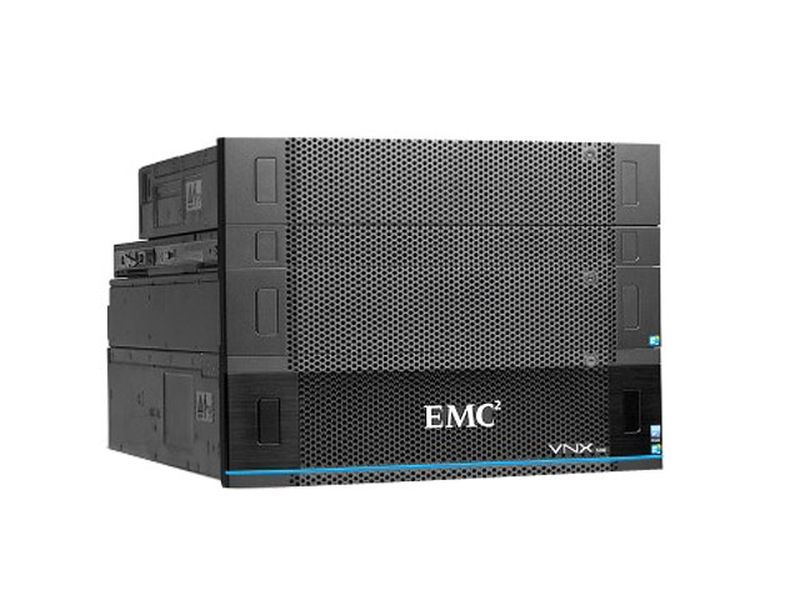

EMC VNX5200

EMC VNX5200

Starting at £13,200x

for 24TB & 3 Year Warranty

[ninja_forms_modal_form id=7 text_link=”Click for Quote”]









EMC VNX5200
EMC VNX Logo

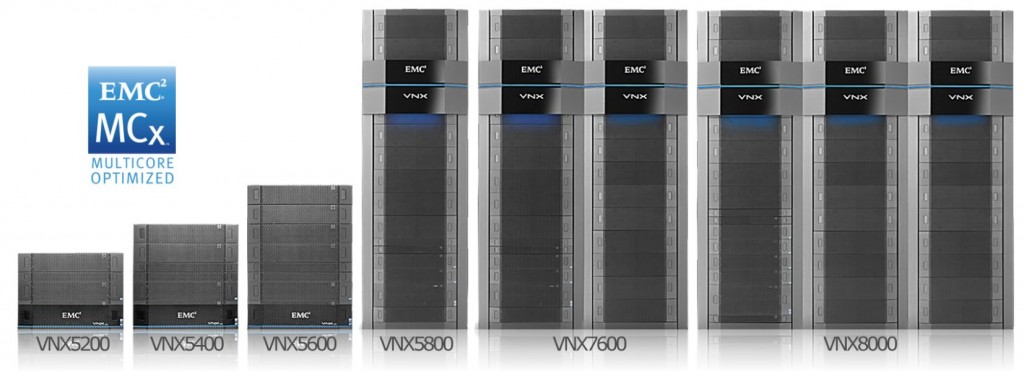

EMC VNX Series





Overview

Powerful, efficient, simple, protected – you’re on the fast track to have it all with the EMC VNX unified storage.  The VNX5200 is the entry level of the new VNX series featuring MCx multicore optimisation. Get scalable performance for virtualised workloads.

With VNX data storage, you are ready to accelerate your business with an EMC FLASH 1st strategy. Select VNX FAST Suite plus a combination of flash, NL-SAS and SAS drives. You’ll benefit from high performance, low latency and a low cost per gigabyte.

Data Sheets

Related

Case Studies







 VNX5200
 Min/Max Drives  4/125
 Max FAST Cache  600 GB
 Array Enclosure  3U Disk Processor Enclosure (Holds 25×2.5″ SAS/Flash Drives
 Drive Enclosure Options  25×2.5″ SAS/Flash Drives-2U15x3.5″ SAS/Flash Drives-3U
 CPU / Memory per Array  2 x Intel Xeon E5-2600 4-Core1.2 GHz/32 GB
 Max Block Ultraflex IO Modules per Array  6
 Raid Options  0/1/10/3/5/6
 Embedded IO Ports per Array  4 x 4 lane SAS ports (for BE Connection)
 Max Total Ports per Array  28
 # File Data Movers  1-3
 # Control Stations  1-2 x 1U Server
 Data Mover: CPU/Memory  Intel Xeon 5600 / 6 GB
