Product Configurations

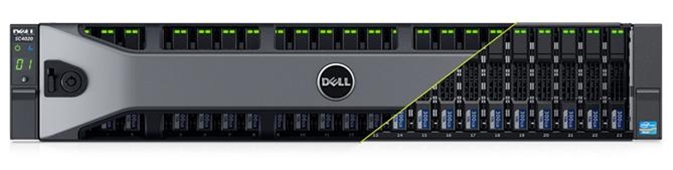

SC4020 All Flash | |
Internal Storage | 24 x 2.5” drive bays |
Supported expansion enclosures | Dell SC200: 12 x 3.5” drive bays |
Dell SC220: 24 x 2.5” drive bays | |
Dell SC280: 84 x 3.5” drive bays | |
Maximum drive count | 192 (24 internal, plus 168 external) |
Total storage capacity | 1.054PB, more in federated systems1 |
Supported drive types | HDD: 15K, 10K, 7.2K RPM; SSD: write-intensive and read-intensive drives in SLC, MLC and TLC formats. Drive types can be mixed in the same system. |

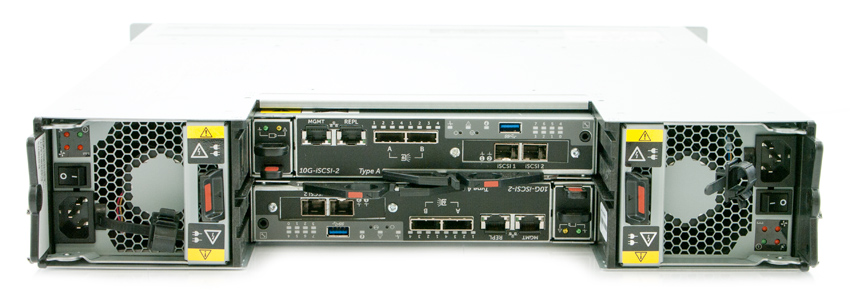

Controllers | 2 Controllers per SC4020 array |
Processor | Intel® Xeon® Processor E3-1265L v2, 2.50GHz, 4 cores |
Memory | 32GB per SC4020 array (16GB per controller) |
Power | |
Power/wattage | 2 hot-swappable 580W power supplies; 580W maximum power |
Heat dissipation | 1,978 BTU/hr maximum |
Voltage | 100-240 VAC |
Frequency | 50/60 Hz |
Amperage | 7.6-3.0 A |
